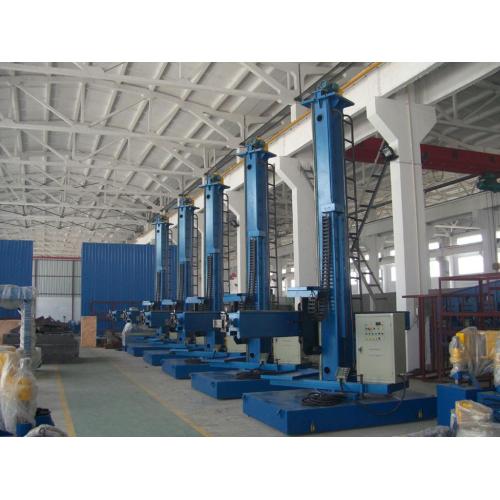

Supply Hot sale automatic vessel welding manipulator machine with High Quality

Unit Price:	5000~20000 USD
Min. Order:	1 Set/Sets

Model No.: LHQ-3030

status: New

Type of machine: Welding Manipulator

Applicable industry: Other

Out-of-warranty service: Video Technical Support, Online Support, Spare Parts

Where to provide local services (in which countries are there overseas service outlets): None

Showroom location (in which countries are there sample rooms overseas): None

Video factory inspection: Provided

Mechanical test report: Provided

Marketing type: Ordinary Product

Core component warranty period: 3 Years

Core components: Bearing, Gearbox, Motor, Gear

place of origin: China

warranty period: 3 Years

Core selling point: Easy To Operate, Multifunctional, Competitive Price, Low Maintenance Cost

Model: LHQ-3030

Lifting stroke: 3000mm

Retracting Stroke: 3000mm

Lifting speed: 120~1200 mm /min

Retracting Speed: 1000 mm / min

Rotation method: Manual / Motorized ±180°

1.Introduction for welding manipulator:

1.1. Welding manipulator With 1000-7000mm effective lifting stroke and retracting stroke.

1.2. Welding column boom machine Boom end capacity up to 300kg. With 100x100mm cross slides.

1.3. Pipe welding manipulator Automatic welding for tank/pipe/vessel straight seam and circle seam.

1.4. Tank welding manipulator Seam tracker and Monitor to make sure the welding result better.

1.5. Automatic Welding manipulator Flux recovery machine is also can be optional.

1.6. Welding manipulator Voltage 220V 380V 480V 600V 50/60Hz are all can be customized

1.7. Welding column boom machine Remote hand control box is also standard configuration

1.8. Pipe welding manipulator Working with welding rotator and welding positioner etc

1.9. Tank welding manipulator Welding source can be Tig/Mig/Saw welding,even plasma welding source

1.10. Automatic Welding manipulator Outside seam welding,inside seam welding & circle seam welding.

2.Drawing for welding manipulator:

3.Characters for welding manipulator:

1. Welding manipulator Structure:Fixed ,Fixed with Rotation and Movable with Rotation.

2. Welding column boom machine Equipment is cold-blended and go through annealing treatment.

3. Pipe welding manipulator There is anti-failing device to ensure the safety of boom lifting.

4.Tank welding manipulator Boom retracting adopts VFD,being stable and reliable.

5. Automatic Welding manipulator X-Y slide is fixed on one end of boom, controlled by remote panel.

6. Welding manipulator Column rotation controlled by manual operation or electric drive.

7. Welding column boom machine Optional: Trolley,seam tracking,monitor system,flux recovery machine etc

8. Pipe welding manipulator Famous spare parts using to ensure good quality and long time using.

4.Technical parameters for welding manipulator:

Model	LHQ-1010	LHQ-2020	LHQ-3030	LHZ-5050	LHZ-6060	LHZ-6060	LHZ-7070
Lifting Stroke	1000mm	2000 mm	3000 mm	4000 mm	5000 mm	6000 mm	7000 mm
Retracting Stroke	1000mm	2000 mm	3000 mm	4000 mm	5000 mm	6000 mm	7000 mm
Lifting Speed	120~1200 mm /min
Retracting Speed	1000 mm / min
Rotation method	Manual / Motorized ±180°
Options	# Welding source MZ-1000 / DC-1000 # Welding seam tracker # Flux recovery machine # surveillance system

5.Main configurations for welding manipulator:

6.Welding manipulator Applications:

7.Welding manipulator Projects:

8.Packing and shipping for Welding manipulator:

9.Our Clients:

10.Our Exhibition:

Welding manipulator

11.Why choosing us:

1. We are MANUFACTURER, so we canoffer better price and after-sale service and shorter delivery date.

2.We have strong design & technical capacity,we can design and manufacture as per the customer's requirement.

3. Our factory has been approved CE certificate and ISO certificates etc

4. We have successfully exported to Europe,USA,Middle East, Southeast Asia and so on foreign countries. We all get good feedback.

5.Our product includes Welding manipulator,welding rotator,welding positioner,H beam welding lines,space frame welding machine,laser welding machine,laser cutting machinelaser cleaning machine,cnc flame plasma cutting machine,edge milling machine,face milling machine,magneticpolishing machine,Sheet metal deburring machine,thread rolling machine,bending machine,punching machine etc

6.We provide a FREE TWO YEAR WARRANTY for all our items.
